Natural Carpet Ride: North Carolina Museum of Art Expansion by Thomas Phifer and Partners and Peter Walker and Partners

Raleigh, North Carolina: Skylights and garden galleries create a firmly grounded museum expansion that sits softly on the land.

By ArchNewsNow
October 6, 2006

This October, the North Carolina Museum of Art (NCMA) will break ground for a $138 million expansion on its 164-acre campus in Raleigh, NC. New York City-based Thomas Phifer and Partners has designed a new 127,000-square-foot building to house the institution’s impressive permanent collection that spans more than 5,000 years, from antiquity to the present day.


When completed in 2009, the graceful, single-story Phifer pavilion will be a long, low rectangular volume clad in a seamless skin of satin finished stainless steel that appears to dematerialize into soft reflections of the landscape, topped by a “flying carpet”-like skylit roof plane. The new building will add 45% more exhibition space for the museum’s permanent collection, including more than two dozen Auguste Rodin sculptures donated in 2005 by the Iris and B. Gerald Cantor Foundation, along with a museum store and café.


Berkeley, CA-based Peter Walker and Partners is designing gardens and outdoor galleries as a landscape for art and artist-conceived environmental projects. The campus will be the nation’s largest art museum park, with walking paths, bike trails, and site-specific commissioned works in a rolling green landscape fringed by pine woods.


The expansion will also transform NCMA’s existing 1983 Edward Durrell Stone building into a center for temporary exhibitions, collections management, education, and administration. A dramatic garden entry plaza will unify the composition of new and existing architecture with the NCMA’s landmark outdoor amphitheater created in 1997 by Smith-Miller Hawkinson Architects with artist Barbara Kruger.


NCMA narrowed an initial list of approximately 30 architects to three firms: Tokyo-based Arata Isozaki & Associates; Thomas Phifer & Partners; and Weiss/Manfredi Architects, both of New York City. Local executive architect for the project is Pearce Brinkley Cease + Lee Architects of Raleigh, N.C. Working in collaboration with Peter Walker and Partners is the local firm of Lappas + Havener, Durham, N.C.


The New Building


The 26-foot-high building will house permanent collections galleries and public spaces, and a level below ground will support back-of-house functions and a sub-grade connection to the existing Stone building. It is designed to “sit very, very softly and gently upon a natural carpet,” according to Thomas Phifer, AIA. The structure will appear as a single, softly luminous volume that merges with the landscape by abstracted reflections of land and sky on its lightly shimmering surface. “Instead of using glass we are investigating how steel – the ultimate opaque material – can actually be used to create an ethereal effect,” Phifer explains.


In explaining why he conceived a one-story building Phifer says, “We started with the art. A single-story building allows controlled top-light in all appropriate spaces. And staying close to the ground plane creates a feeling of accessibility to visitors and a strong connection to place. The building is literally and figuratively grounded.”


Visitors will be drawn into the building by a double allée of upright trees in a 5,650-square-foot entry courtyard with an outdoor “porch garden” designed by Peter Walker, FASLA. Emerging from this garden into the open, light-filled Front Hall, visitors will have a clear view of art installed in the long Central Hall of the permanent collections galleries beyond the visitor information desk. Here, as throughout the entire building, daylight will create a soft, constant glow. Garden Galleries – outdoor volumes that push into the pavilion from the perimeter – will also draw in natural light – and offer views to the landscape beyond.


Light from Above


The undulating “flying carpet” roof line will echo the surrounding hills. A system of rhythmic vaults and coffers developed by the Phifer office in collaboration with lighting consultant Fisher Marantz Stone of New York and daylight engineers at Ove Arup of London, bring nature inside the entire building by capturing daylight through highly-engineered, glass-enclosed occuli. A unique system at the skylight glass in each oculus controls the light falling through the coffers. Elements within the glasswork can be dialed up or down to block, filter, and softly direct the light that is allowed into the galleries.


With white oak floors and pale, plastered, 16-foot walls throughout, more than 65,000 total square feet of exhibition galleries will be suffused with controlled natural light and supplemental artificial light as needed.


Public Trust


According to Phifer, “The new campus has to have a sense of belonging to everybody equally. So we knew our scheme had to be accessible and open, accepting, inviting. The new building and the campus connections were all designed to make that happen. We wanted it to feel shared, owned by the people.”


Project Credits

Owner: State of North Carolina

North Carolina Museum of Art: Dr. Lawrence J. Wheeler (Director), Daniel P. Gottlieb (Deputy Director of Planning and Design)

Design Architect: Thomas Phifer and Partners, New York, NY

Design Team: Thomas Phifer, AIA (Principal), Greg Reaves (Project Partner), Gabriel Smith (Project Architect), Christoph Timm, Adam Ruffin, Katie Bennett, Kerim Demirkan, Len Lopate, Jon Benner, Joseph Sevene, Daniel Taft, Eric Richey

Executive Architect: Pearce Brinkley Cease + Lee Architects, Raleigh, NC

Design Team: Jeffrey Lee, Clymer Cease (Principals), David Francis (Project Architect), Matt Konar, Juliette Dolle, Henry Newell, David Lehman

Landscape Architect: Peter Walker and Partners, Berkeley, CA

Design Team: Peter Walker (Principal), Sarah Keuhl (Project Partner), Daphne Edwards, Michael Oser, Paul Sieron, Michael Dellis

Executive Landscape Architect: Lappas + Havener, Durham, NC

Design Team: Walter R. Havener (Principal), Jesse Turner

Structural Engineers: Lasater Hopkins Chang; Skidmore, Owings & Merrill

Mechanical Engineers: Stanford White and Associates; Altieri Sebor Weiber

Civil Engineers: Kimley-Horn Associates; ArtifexED

Daylight Engineering: Ove Arup UK/New York

Electric Lighting: Fisher Marantz Stone

Acoustics: Creative Acoustics

Security: Risk Management Associates; James J. Davis and Associates

Construction Management: Barnhill/Centex


Founded in 1997, Thomas Phifer and Partners has designed numerous residential, commercial, and institutional buildings, including the Steelcase Workstage 001 Building, a high-technology prototype office building in Grand Rapids, Michigan; a new United States Federal Courthouse in an historic district of Salt Lake City; the Arizona State University Gateway Project; and restoration and expansion of Castle Clinton Federal Monument at the Battery in New York City. The firm was chosen by the Mayor’s Office of New York City in 2005 to redesign the city’s streetlights.


Peter Walker and Partners was founded in Berkeley, CA, in 1983. The office has joined with renowned architects to create significant projects around the globe. Among these are the Clark Center for Biomedical Engineering and Sciences and the Center for Clinical Science Research (Palo Alto, CA) with Norman Foster and Partners; Nishi Harima Science Garden City (Japan) with Arata Isozaki and Associates; the IBM Solana Campus (Westlake/Southlake, TX) with Mitchell/Giurgola Architects and Ricardo Legorreta Architectos; Toyota Municipal Museum of Art (Japan) with Yoshio Taniguchi and Associates; and the Nasher Foundation Sculpture Center (Dallas) with Renzo Piano Building Workshop. Over the years the firm has received many awards and won numerous design competitions, including the World Trade Center Memorial in New York City with Michael Arad.


Founded in 1945, the Raleigh-based Pearce Brinkley Cease + Lee offers a range of services that includes strategic planning, space planning, and programming; urban, architectural, and interior design; project management; and construction administration. A major component of the practice has been the design of college and university facilities, with more than 30 academic projects completed over the past six years. The firm is an active member of the United States Green Building Council and has 19 LEED accredited architects on its professional staff.


Founded in 1993, Lappas + Havener, PA, is a 14-person landscape architecture firm based in Durham, NC. The firm specializes in the design of public places and is known for master planning and site design for museums, universities, corporations, healthcare facilities, and civic spaces. A primary focus of the design work at the firm is creation and enhancement of the academic environment.

(click on pictures to enlarge)

(Thomas Phifer and Partners Architects)
North Carolina Museum of Art: overview of the new gallery building and gardens

(Thomas Phifer and Partners Architects)
View from Entry Plaza

(Thomas Phifer and Partners Architects)
Overview of roof with Garden Gallery

(Thomas Phifer and Partners Architects)

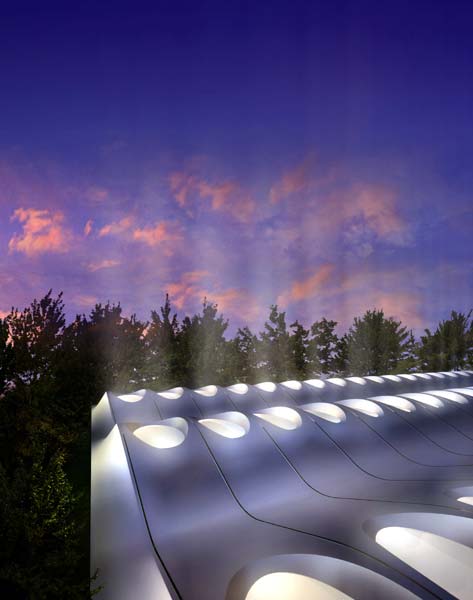

Detail of roof at dusk

(Thomas Phifer and Partners Architects)
Garden Gallery

(Thomas Phifer and Partners Architects)
The lobby

(Thomas Phifer and Partners Architects)
The Modern Gallery

(Thomas Phifer and Partners Architects)
The European Gallery

(Thomas Phifer and Partners Architects)
The Central Hall with classical sculpture

(Thomas Phifer and Partners Architects)
The Rodin Gallery and Court

(Thomas Phifer and Partners Architects)
The Rodin Court

(Peter Walker and Partners/Christopher Grubbs)
An allée formed by two lines of elegant oaks directs visitors to the museum entrance

(Peter Walker and Partners/Christopher Grubbs)
The Rodin Courtyard

(Peter Walker and Partners/Christopher Grubbs)
Within the south garden, lawns and hedges form intimately scaled “rooms” for viewing smaller sculptures and frame views of the surrounding landscape

(Thomas Phifer and Partners Architects)
Site plan

(North Carolina Museum of Art)
“P-I-C-T-U-R-E-T-H-I-S / Museum Park Theater”: by Barbara, Henry Smith-Miller, Laurie Hawkinson, and Nicholas Quennell; designed 1992–1994, constructed 1994–1997
